AFFiNE

Name: AFFiNE
Author: Harman Singh Hira

Docs, whiteboards and databases in one local-first workspace

ghcr.io/hsinghhira/affine:latest
port 6102
Productivity

Visit project site

Web App

http://localhost:6102/

Admin Panel

/admin

http://localhost:6102/admin

AFFiNE is an open-source workspace that puts documents, an endless whiteboard and databases in one editor, like Notion and Miro together. This is AFFiNE in a single container, with one port and one data folder. Database passwords and the server key are made for you on first start.

Features

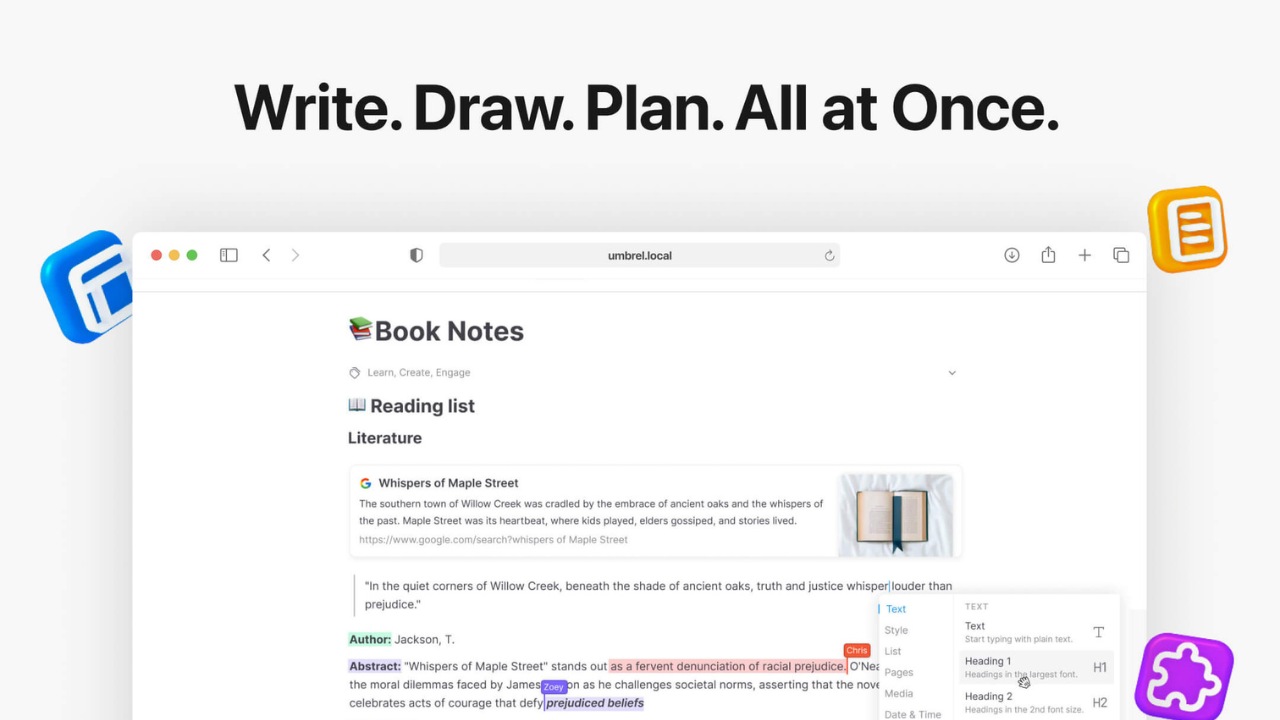

Rich documents for notes, wikis and knowledge bases

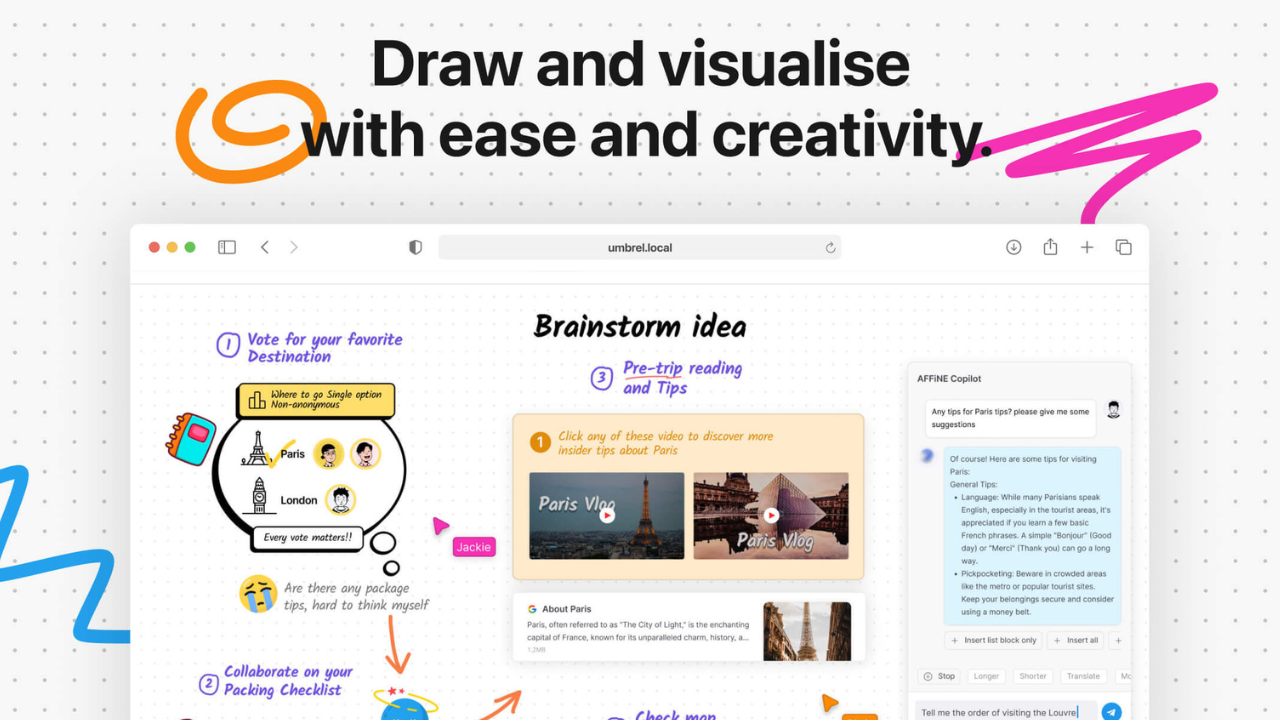

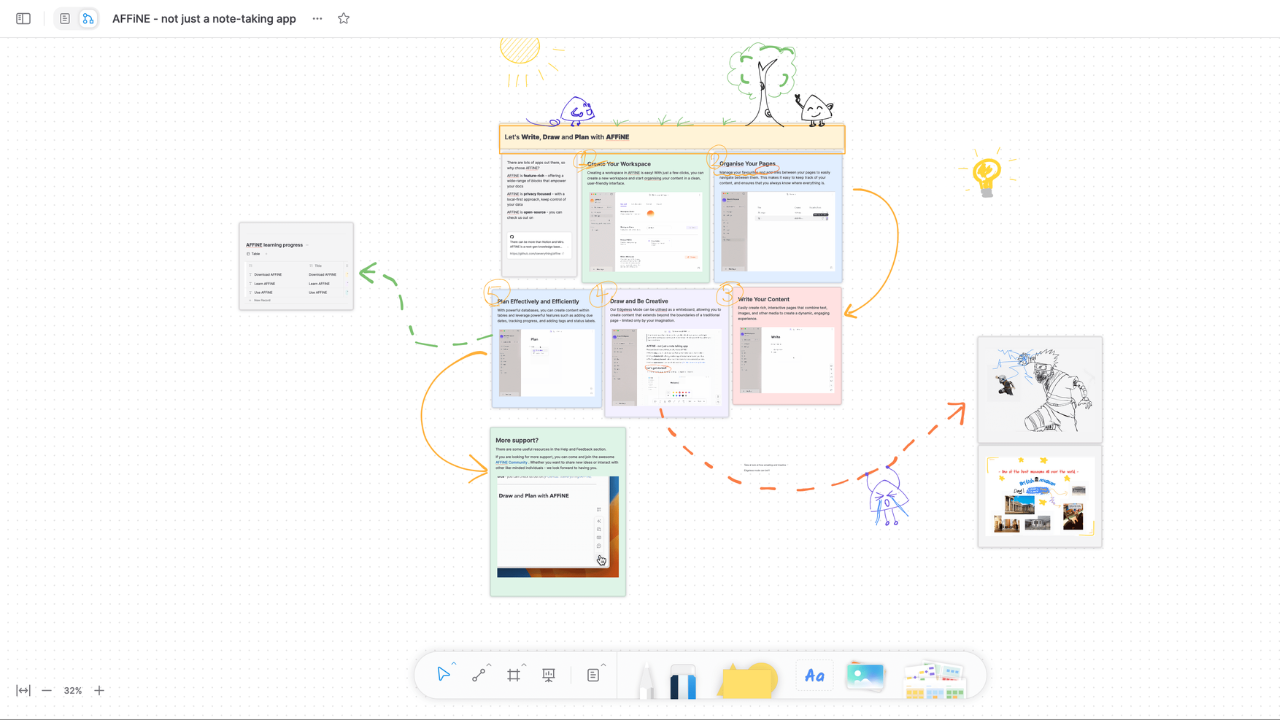

An endless canvas for whiteboards, brainstorming and planning
Databases with table and kanban views
Real-time collaboration and sharing
Built-in search across all your workspaces
Sign in with Google, GitHub or your own OIDC service (Authentik, Keycloak...)
Change sign-up rules, email and more by adding a setting in the app settings

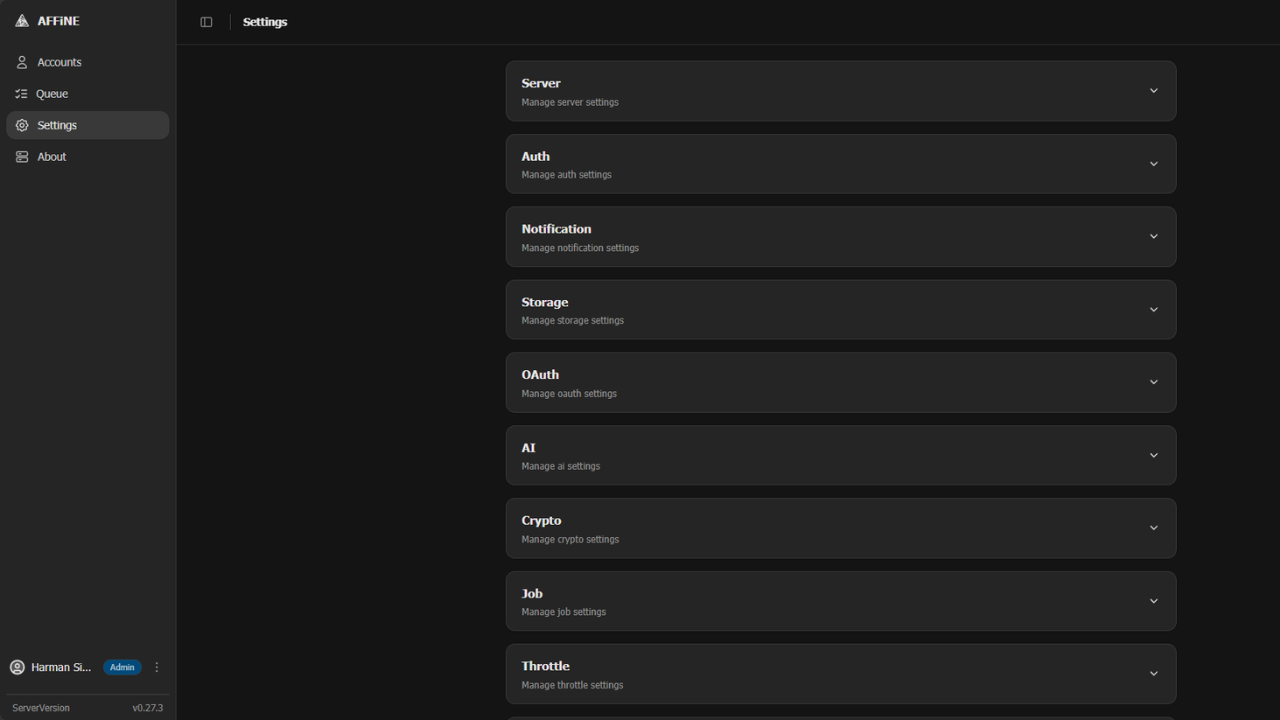

Admin panel for users, settings, email and AI (bring your own key)
PostgreSQL with pgvector and Redis inside, nothing else to install

How to use

Open AFFiNE from your dashboard.
The first time, AFFiNE asks you to create the admin account. Fill in your name, email and a password.
Sign in and create your first workspace.
Change server settings, email and AI any time in the admin panel at http://your-server-ip:6102/admin.

The settings in the first table are already in the app settings. To use any other one, open the app settings, add the variable with your value, save, and the app restarts with it. A setting you leave out uses its default.

In the app settings

Variable	Default value	Description
`TZ`	`$TZ`	Your time zone. It is filled in from your ZimaOS time zone. Leave it unless you need another.
`PUBLIC_URL`	`http://localhost:6102`	The address you type in your browser. It starts as localhost, which only works on this device. For other devices, change `localhost` to your ZimaOS IP. Keep the port at 6102. Links in emails and shared pages use this address.

Server

Variable	Default value	Description
`AFFINE_SERVER_NAME`	`AFFiNE Self Hosted Server`	The name shown when you connect from the AFFiNE desktop or mobile app.

Sign-up and accounts

Variable	Default value	Description
`AFFINE_ALLOW_SIGNUP`	`true`	Set to false so only people you invite can join. Default: anyone who can open the page can sign up.
`AFFINE_ALLOW_SIGNUP_FOR_OAUTH`	`true`	Set to false to stop new accounts made with Google, GitHub or OIDC sign-in.
`AFFINE_PASSWORD_MIN_LENGTH`	`8`	The shortest password people may choose.
`AFFINE_PASSWORD_MAX_LENGTH`	`32`	The longest password people may choose.
`AFFINE_ALLOW_GUEST_DEMO_WORKSPACE`	`true`	Set to false so visitors who are not signed in can't make a demo workspace.

Email (SMTP)

Variable	Default value	Description
`MAILER_HOST`	`—`	Your email server, like smtp.gmail.com. AFFiNE uses email for invites, sign-in links and password resets. Leave it out and AFFiNE sends no emails.
`MAILER_PORT`	`465`	Your email server port, usually 465 or 587.
`MAILER_USER`	`—`	The username for your email server.
`MAILER_PASSWORD`	`—`	The password for your email server. For Gmail, use an app password.
`MAILER_SENDER`	`AFFiNE Self Hosted <[email protected]>`	The "from" address on emails, like AFFiNE <[email protected]>.
`MAILER_IGNORE_TLS`	`false`	Set to true if your email server uses a self-signed certificate.
`MAILER_SERVERNAME`	`—`	The name AFFiNE gives itself when it talks to the email server (HELO), like mail.example.com. Leave it out to use the container hostname.

Sign in with Google, GitHub or OIDC

Variable	Default value	Description
`AFFINE_OAUTH_GOOGLE_CLIENT_ID`	`—`	Client ID for "Sign in with Google". In Google Cloud, set the redirect URL to your PUBLIC_URL followed by /oauth/callback. Leave it out to keep Google sign-in off.
`AFFINE_OAUTH_GOOGLE_CLIENT_SECRET`	`—`	Client secret for "Sign in with Google".
`AFFINE_OAUTH_GITHUB_CLIENT_ID`	`—`	Client ID for "Sign in with GitHub". In GitHub, set the callback URL to your PUBLIC_URL followed by /oauth/callback. Leave it out to keep GitHub sign-in off.
`AFFINE_OAUTH_GITHUB_CLIENT_SECRET`	`—`	Client secret for "Sign in with GitHub".
`AFFINE_OAUTH_OIDC_ISSUER`	`—`	The issuer URL of your own sign-in service (Authentik, Keycloak, Pocket ID...), like https://auth.example.com/application/o/affine/. Leave it out to keep OIDC sign-in off.
`AFFINE_OAUTH_OIDC_CLIENT_ID`	`—`	Client ID from your OIDC sign-in service. Set its redirect URL to your PUBLIC_URL followed by /oauth/callback.
`AFFINE_OAUTH_OIDC_CLIENT_SECRET`	`—`	Client secret from your OIDC sign-in service.

AI and search

Variable	Default value	Description
`AFFINE_COPILOT_ENABLED`	`false`	Set to true to turn on AI features. Each workspace owner then adds their own AI provider key in Workspace Settings, Integrations, AI BYOK.
`AFFINE_COPILOT_ALLOW_CUSTOM_ENDPOINT`	`false`	Set to true to let workspace owners use a custom AI endpoint (like a local Ollama or an OpenAI-compatible server).
`AFFINE_INDEXER_ENABLED`	`true`	Set to false to turn off full-text search across documents.

docker-compose.yml

name: affine

services:
  affine:
    image: ghcr.io/hsinghhira/affine:latest
    container_name: affine
    restart: unless-stopped
    stop_grace_period: 90s
    privileged: true
    environment:
      - TZ=$TZ
      - PUBLIC_URL=http://localhost:6102
    ports:
      - target: 8080
        published: "6102"
        protocol: tcp
    volumes:
      - type: bind
        source: /DATA/AppData/$AppID/data
        target: /data
        bind:
          create_host_path: true
    healthcheck:
      test: ["CMD", "curl", "-fsS", "-o", "/dev/null", "http://127.0.0.1:8080/info"]
      interval: 30s
      timeout: 10s
      retries: 5
      start_period: 300s
    deploy:
      resources:
        limits:
          cpus: "2.00"
          memory: 3072M
        reservations:
          cpus: "0.00"
          memory: 512M
    labels:
      icon: https://cdn.jsdelivr.net/gh/HSinghHira/IceStore@main/Apps/affine/icon.png
    x-casaos:
      id: com.icestore.affine
      envs:
        - container: TZ
          description:
            en_US: >-
              Your time zone. It is filled in from your ZimaOS time zone.
              Leave it unless you need another.
        - container: PUBLIC_URL
          description:
            en_US: >-
              The address you type in your browser. It starts as localhost,
              which only works on this device. For other devices, change
              `localhost` to your ZimaOS IP. Keep the port at 6102. Links in
              emails and shared pages use this address.
      ports:
        - container: "8080"
          description:
            en_US: AFFiNE web app, admin panel (/admin) and API, published on host as 6102
      volumes:
        - container: /data
          description:
            en_US: >-
              Everything AFFiNE keeps: the database, uploaded files,
              config.json, the server key and the database passwords.

x-casaos:
  id: com.icestore.affine
  architectures:
    - amd64
    - arm64
  main: affine
  author: HSinghHira
  category: Productivity
  developer: Toeverything
  icon: https://cdn.jsdelivr.net/gh/HSinghHira/IceStore@main/Apps/affine/icon.png
  screenshot_link:
    - https://cdn.jsdelivr.net/gh/HSinghHira/IceStore@main/Apps/affine/screenshot-1.png
    - https://cdn.jsdelivr.net/gh/HSinghHira/IceStore@main/Apps/affine/screenshot-2.png
    - https://cdn.jsdelivr.net/gh/HSinghHira/IceStore@main/Apps/affine/screenshot-3.png
    - https://cdn.jsdelivr.net/gh/HSinghHira/IceStore@main/Apps/affine/screenshot-4.png
  title:
    en_US: AFFiNE
  tagline:
    en_US: Docs, whiteboards and databases in one local-first workspace
  description:
    en_US: >-
      Visit: [https://icestore.hsinghhira.me/app/affine/](https://icestore.hsinghhira.me/app/affine/) for full details


      AFFiNE is an open-source workspace that puts documents, an endless
      whiteboard and databases in one editor, like Notion and Miro together.
      This is AFFiNE in a single container, with one port and one data folder.
      Database passwords and the server key are made for you on first start.


      **Features**


      - Rich documents for notes, wikis and knowledge bases

      - An endless canvas for whiteboards, brainstorming and planning

      - Databases with table and kanban views

      - Real-time collaboration and sharing

      - Built-in search across all your workspaces

      - Sign in with Google, GitHub or your own OIDC service (Authentik, Keycloak...)

      - Change sign-up rules, email and more by adding a setting in the app
        settings

      - Admin panel for users, settings, email and AI (bring your own key)

      - PostgreSQL with pgvector and Redis inside, nothing else to install


      **How to use?**


      1. Open AFFiNE from the Zima OS dashboard.


      2. The first time, AFFiNE asks you to create the admin account. Fill in
         your name, email and a password.


      3. Sign in and create your first workspace.


      4. Change server settings, email and AI any time in the admin panel at
         http://your-zimaos-ip:6102/admin.
  tips:
    before_install:
      en_US: >-
        Visit: [https://icestore.hsinghhira.me/app/affine/](https://icestore.hsinghhira.me/app/affine/) for full details
  index: /
  port_map: "6102"
  scheme: http
  is_uncontrolled: false
  version: "0.27.4"
  update_at: "2026-10-18"
  release_notes:
    en_US: |-
      - Single-container AFFiNE with one port (6102) and one data folder
      - The migration job runs inside the container before every start, so updates migrate by themselves
      - Database passwords are made on first start, so each install gets its own
      - The app settings stay short; every other setting is listed on the IceStore app page (Variables tab) and can be added in the app settings
      - Added settings are written into AFFiNE's config.json on every start, so changing them later works; removing one brings the default back
      - ghcr.io/toeverything/affine 0.27.4
      - PostgreSQL 16 with pgvector and Redis from Debian trixie
  repo: "https://github.com/toeverything/AFFiNE"
  support: "https://github.com/toeverything/AFFiNE/issues"
  docs: "https://docs.affine.pro/self-host-affine"
